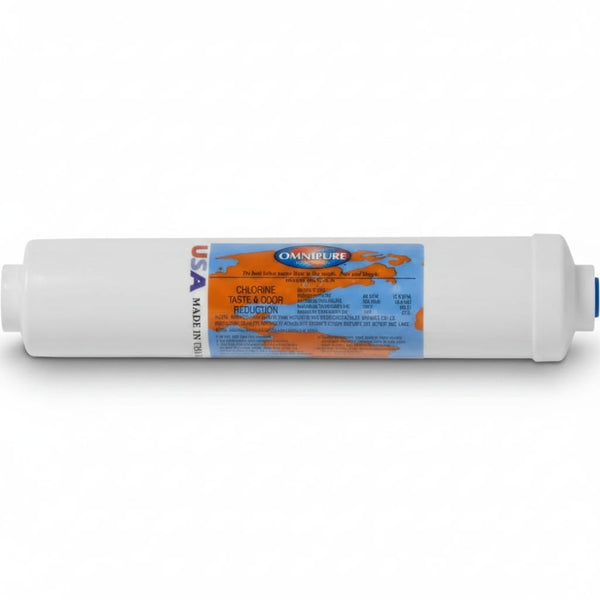

Fluoride & Chlorine Reduction Inline Filter | Omnipure | NZ

Model & Specifications

Model: K5650ABA-BB
Country of Origin: USA
Connection: 12mm BB threaded
Filter Media: KDF 55, Activated Alumina, Granular Activated Carbon (GAC)

What This Filter Does

Fluoride Reduction: Activated alumina removes over 90% of fluoride from drinking water. Works most effectively when water pH is between 5–7.
Chlorine & Heavy Metals: KDF 55 medium reduces chlorine by over 95% and removes water-soluble heavy metals while controlling scale, bacteria, and algae.
Premium Design: Genuine OEM Omnipure cartridge with seamless construction—no glues, no contamination risk. Recognised globally as a top-quality inline filter.

Performance Data

Fluoride Reduction: >90%
Chlorine Reduction: >95%
Flow Rate: 1.89 litres per minute
Maximum Pressure: 125 PSIG
Filter Life: 5,678 litres or 6 months (whichever comes first)
Capacity: ~800 litres (fluoride) / 5,678 litres (chlorine)
Dimensions: 254 mm long × 63 mm diameter
Operating Temperature: 2–38°C

Installation Requirements

Must be used with a pressure-reducing valve. 12mm threaded fittings (push-fit connectors available separately).

How to Replace

Removing the old filter: Turn off water supply under the sink. Open the tap to release pressure. Gently hold the collet and pull the tube out.
Installing the new filter: Check the arrow marking (inlet to outlet). Push the tube fully into the collet at both ends, then gently pull to confirm it locks. Turn water back on and run the tap for a few minutes to flush carbon fines.
