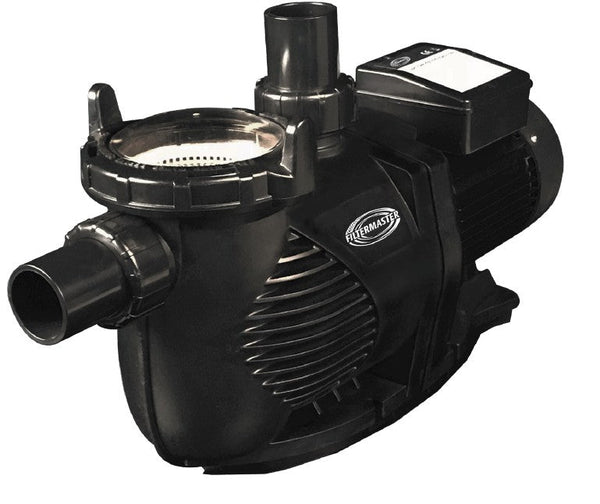

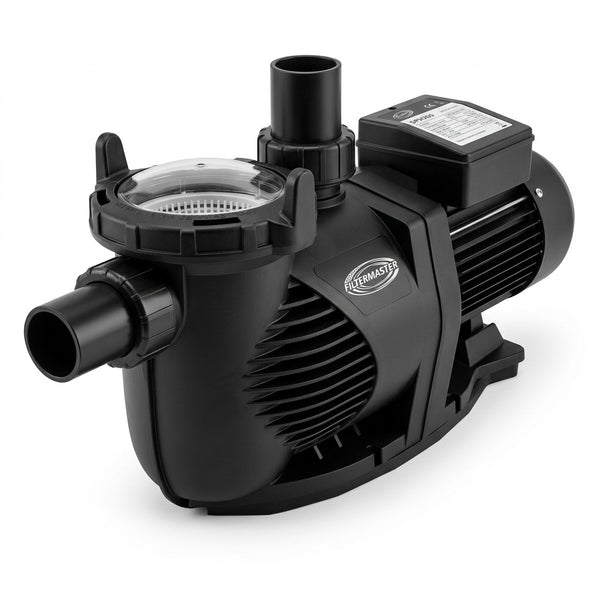

Filtermaster SPH200 Swimming Pool Pump

High-capacity circulation for large residential pools

The Filtermaster SPH200 swimming pool pump provides 2.0 hp (1.5 kW) of power for large residential pool circulation and filtration. Whether you are replacing an existing pump or planning a new system, match the SPH200 to your filter, plumbing and required flow rather than choosing by horsepower alone.

Specifications at a glance

• Model: Filtermaster FM SPH200
• Power: 2.0 hp / 1.5 kW
• Approximate flow rate: 480 litres per minute, equivalent to 28,800 litres per hour
• Maximum head: 20 metres

Actual flow depends on pipe size, pipe length, fittings, elevation and filter resistance. The quoted flow rate and maximum head are separate performance figures, not a single operating point.

Is the SPH200 right for your pool?

The SPH200 is listed for large residential pools of approximately 80,000–100,000 litres. Use this as an initial sizing guide rather than a guaranteed recommendation. Your complete system determines the flow delivered and the circulation time.

For installations with long pipe runs, solar heating or multiple water features, confirm the required operating flow and head before ordering. A higher horsepower rating alone does not guarantee the right match.

Check before ordering

• Filter capacity: Confirm your filter is rated for the pump’s operating flow.
• Plumbing: Check pipe sizes, connection requirements and the resistance from long runs or extra fittings.
• Replacement fit: Compare your existing pump’s connections, dimensions and available installation space.
• Additional equipment: Account for heating equipment, elevation changes and water features when assessing system requirements.

Need help choosing?

Contact NZ Pump And Water Filters with your pool volume, filter details and existing pump model. We can help you assess whether the SPH200 is the right match for your setup.
