Applications

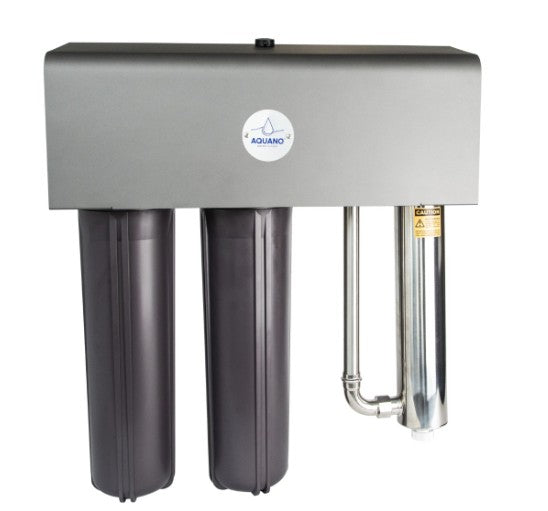

Plumb directly into the water line where it enters the house and deliver treated water to every faucet for cooking, bathing, drinking, or brushing teeth.
Point-of-entry UV systems are ideal for anything from small homes to large homes
Delivers safe chemical free water by using high intensity UV-C light to destroy bacteria, viruses, and miro organisms for light and commercial use.
Features
- Suitable for indoor and outdoor installtion
- Features a durable stainless steel chamber
- Long Life UV lamp
- Pre assembled
- Neoprene weather proof covers for the housing longeveity

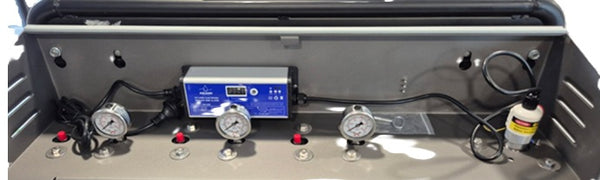

- Oild Filled Gauges
Specifications
- Max UV flowrate 120lpm
- 46 watt UV Lamp
- Maximum operating pressure 125psi
- Voltage 120-240V / 50/60 Hz
- Water Temp 2- 46deg C
- UV Chamber 304 stainless steel
- Electronic ballast with Countdown Timer 365 days
- Inlet 1" BSPP Male
- Outlet 1" BSPP Female
- Dimensions 680 x 770 x 210mm
Treatment levels (mJ/Cm2) at nominal flow rates Flow: 120LPM @ 30mJ/Cm2

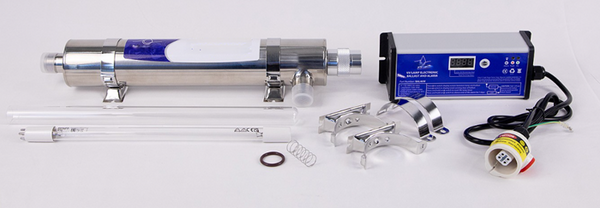

Ballast Features
Visual Lamp Life Remaining YES
Audible Lamp Life Failure YES
Audible Lamp Replacement Reminder YES
Installation Requirements and Warnings
This guide outlines essential requirements and warnings for installing your Klarify UV unit to ensure optimal performance and to maintain your warranty.
Key Requirements
-
Outdoor Installation: The provided neoprene covers protect the unit from frost, direct sunlight, and water. However, the included surge protector is not weatherproof and must be installed under eaves or in a sheltered, moisture-free area.
-
Corrosive Environments: Do not install the unit in areas with high salt exposure (like near coastlines) or aggressive chemicals, as this can cause damage.
-
Water Supply: Use only a cold water line (0–52°C) and protect the pipes from freezing.
-
Water Pressure: The required water pressure is 300–875 kPa. If your line pressure exceeds 500 kPa, a pressure-limiting valve is required (as per AS/NZS 3500.1:2021, Clause 3.3.4).
-
Backflow Prevention: A dual check valve must be installed at the water entry point.
-
Pipe Connections: The unit uses a standard 25mm thread. Alternate fittings may be needed depending on your setup.
-
Pipe Support: Use unions to make servicing easier and support heavy pipes to prevent stress on the unit.
-
Flow Rate: Do not exceed the system’s rated flow rate.
Electrical Requirements & Surge Protection
-
Power Supply: The unit requires AC 240V | 50Hz.
-
Electrical Load: Ensure the power supply is sufficient, especially if the unit is on the same circuit as a pump or other appliances. Consult a qualified electrician if you are unsure.
-
Power Surge Protection: A surge protector is included with your unit and must be used to protect the ballast and alarm from electrical spikes.
-
The provided surge protector is NOT weatherproof. Install it in a dry, sheltered location.
-
For outdoor installations, you must have a hard-wired, weatherproof surge protector installed by a licensed electrician.
-
Failure to use a suitable surge protector will void your warranty. The unit's built-in fuse offers only basic protection and is not designed for strong surges or lightning strikes.
-
Warranty
5 years
