Application
This 10" Heavy Duty Standard size housing is perfect for mains pressure water filtration. It is Ideal to filter all cold water to your kitchen faucet without needing an extra tap on the benchtop and ensures minimal pressure drop.
Recommended for Chlorinated or Rural water supply

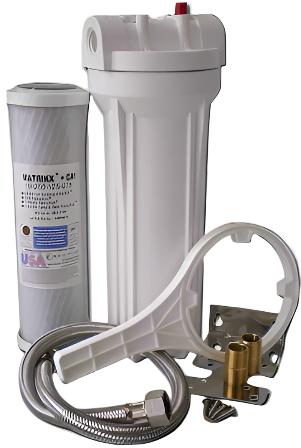

Includes
- 15mm BSP fittings for easy connection.
- 10" Standard size housing, mounting bracket, and stainless steel fixing screws
- 15mm x 600mm flexi pipe
- Housing spanner
- 1 x 0.5 micron filter made in the USA
We recommend installing a pressure limiting valve before the housing for optimal performance and to prevent water hammer damage.
Reduces
- Chlorine Reduction: The coconut shell carbon is highly effective at reducing chlorine from water, improving taste and odor.
- Chemical Removal: It also helps in the removal of volatile organic compounds (VOCs), chemicals, and other contaminants that may affect water quality.
- Sediment Filtration: The 0.5-micron rating means it can filter out fine particles, sediments, and even some bacteria and cysts from the water.
- Cyst Reduction: The small micron size can help in the reduction of protozoan cysts like Giardia and Cryptosporidium.
- Taste and Odor Improvement: With the coconut shell carbon, it enhances the taste and removes unpleasant odors from the water.
Specifications
This filter element tested and certified under ANSI/NSF Standard 42 & 53 for materials only
- Micron Rating (Nominal) 0.5 _m
Filter Dimensions 2.50@ O.D. x 1.25@ I.D. x 9.80@ L
Chlorine Reduction >95% 15,000 gallons @ 1.0 GPM
Cyst, Cryptosporidium, Giadia Reduction >99.95% >99.95% @ 3-4 _m
Initial _P <4.0 psid @ 1.0 GPM
Carbon Weight 0.75 lbs.
Carbon Type Coconut Shell Carbon
- Do not use with water that is microbiologically unsafe or of unknown quality without adequate disinfection before or after the system. Activated carbon block filters are not designed to remove bacteria or viruses.
General Installation
- Flush the new cartridge for 10 minutes prior to use.
- Replace the cartridge when the rated capacity is reached, or when the flow becomes too slow.
